D5 Evo Domestic - Light Industrial Sliding Gate Motor

Centurion's Most popular sliding Gate motor is trusted by Installers across New Zealand for its power and reliability on applications from light domestic gates through to Light usage Industrial Gates.

This Motor is suitable for all sliding gates with daily usage less than 150 operations per day and a gate weight upto 500kg (based on flat ground calculation)
D5Evo is the goto gate operator for domestic and light-industrial applications.

D5Evo is by design a Battery driven product which means in power failure situations your gate can keep operating for a period of time until the power comes back on.

Main features

Speed

• The perfect balance between security and safety with a top speed of up to 36 metres per minute

Diagnostics and logging

• Makes your life easier with advanced diagnostic feedback
• Intelligent logging and reporting

Wireless user interface

• Wireless and effortless – easy setup and configuration from your smartphone

SMART hardware

• Provides the best experience for installers and end-users alike with easy access to mounting hardware and optimised cable management for the neatest installation around

All the most innovative technological features

• Onboard multichannel NOVA receiver with 1500 button memory
• Wireless and effortless – easy setup and configuration from your smartphone
• 24V system capable of performing more operations and offering extended battery backup and power failure autonomy
• New and improved theft-resistant cage with a patented design offering outstanding security and peace of mind
• Vibration sensor that can be connected to a third-party device to notify you in the event that the gate motor is being tampered with
• Intelligent battery charger with onboard diagnostics and SMART communication between the charger and the controller
• Improved position control system incorporating hall effect technology – highly resistant to interference
• Individually configurable inputs and outputs
• Convenient and intuitive single-action manual release

With such striking, rugged good looks, the VERT-X linear swing gate motor for domestic gates is more than just a pretty face. Combining an innovative open-nut drive system, advanced diagnostic capabilities and functionality, rugged die-cast aluminium construction and exceptional aesthetics for a wholly unobtrusive installation, VERT-X is positioned firmly at the apex of swing gate automation.

 Features:

• Exceptionally easy system setup via LCD user interface.
• Open-nut drive system and rugged die-cast aluminium construction for reliable operation.
• Supports inward- and outward-opening gates without needing mechanical endstops.
• Automated limit setup for double and single swing gates.
• Fail-safe opto-electronic position and collision detection system ensures maximum safety.
• Advanced closed-loop speed control for safe and reliable operation, even on inc lined gates under windy conditions.
• Multiple operating features including Intruder-detection Alarm Modes (a world first).
• Onboard code-hopping multichannel receiver with selective add and delete.
• Battery backup for uninterrupted operation during power failures.

Specifications:

• Input Voltage: 90 V - 240V AC +/- 10%, 50/60Hz
• Motor Voltage: 12V DC
• Motor Power Supply: Battery-Driven, 1.8A Charger
• Push Force (Max): 250kgf
• Typical Gate Opening Time: 11 Sec
• Duty Cycle (Mains Present): 50%
• Daily Operations (Max): 250
• Maximim Leaf Width for Corresponding Gate Mass (90° Opening):
  1.5m = 600kg < 2m = 335kg < 2.5m = 215kg < 3m = 150kg

The thrust required to operate safely. A smart torque management system based on the microprocessor technology of BFT control units. Acquiring data from several indicators, it updates the level of thrust required to perform the operation. D-Track also facilitates the installer in providing for the certifications required by law. Conventional control units do not "read" the exact position of the gate and consequently apply constant thrust levels, without ensuring stable sensitivity during the opening and closing operations. BFT control devices record the slightest variation in the gate or door force, for example due to differences in temperature or wear, constantly supplying the optimum torque to the motor. A conventional control unit could not detect these thrust variations, which would result in it indicating the presence of non-existent obstacles. The BFT system thus guarantees the maximum safety and perfect functioning of the equipment, no matter what the climactic and temperature conditions and degree of mechanical wear.

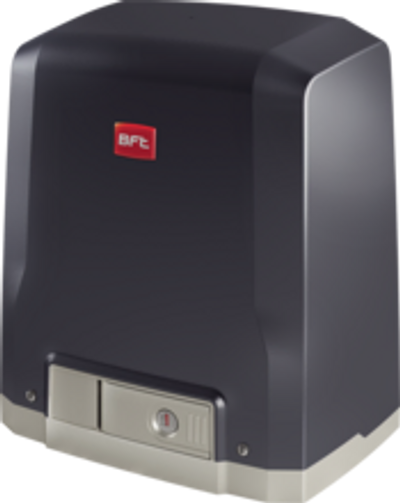

The BFT ARES ULTRA BT A1500 is an automatic slide gate opener that is capable of moving slide gates weighing up to 3300 pounds. This BFT gate operator is perfect for commercial and industrial use.

Low Voltage Motor

The 24V electrical motor guarantees maximum accuracy in torque and speed control and makes it suitable for intensive gate use, even in industrial installations.

Compatible Racks

A rack sliding gate requires a rack to be used with your sliding gate. Below are the compatible racks we sell for the ARES series of slide gate openers.

• CFZ - 6 1/2 ft galvanized steel rack
• CVZ - 3 1/4 ft galvanized steel rack
• CP - 3 1/4 ft plastic rack

Specifications

• Control Panel: MERAK (included)
• Max Leaf Weight: 3300 Lbs.
• Leaf Speed: 7.8 ips (12 m/min)
• Power Supply: 120V single-phase
• Power Input: 400 W
• Pinion Module: 4
• Slowdown: Yes
• Locking: Mechanical
• Release: Lever-Operated With Personal Key
• Frequency Of Use: Intensive
• Environmental Conditions: -4°F - 131°F
• Protection Rating: IP44
• Operator Weight: 15.5 Lbs
• Impact Reaction: D-Track

The BFT Phobos BT A40 Swing Gate Operator Kit includes a Phobos BT A40 Operator Arm, Thalia Control Board, BFT B-EBA P111494 WIFI Gateway Expansion Card, two 4-Channel Transmitters, and a set of Self-Aligning Through Beam Photo Eyes. This is a complete kit including everything you need to get your swing gate opener up and running. Designed for single swing gates up to 17 ft long and weighing up to 550 lbs, the A40 Single Swing Gate Operator Kit has an innovative D-track system that ensures maximum safety for people and property.

• Designed For Swing Gates
• Standard 20 Second Open/Close Time
• For Residential Or Commercial Applications
• D-Track System Serves Enhanced Functionality
• High Quality Safety Devices By BFT Included
• Photocell Has A Reliable 100 ft Sensing Range
• Transmitter Can Be Added To A Key Ring Or Car Visor
• Single Operator For Gates Up To 550 lbs And 17 ft Long
• Rolling Code Technology Prevents Transmitter Cloning
• Kit Contains All Components For Functioning Gate System
• B-EBA WIFI Gateway Allows Users To Remotely Control & Montior Gate Status

 Specifications

• Release: Yes
• Slowdown: Yes
• Max Length: 17 ft.
• Power supply: 24 V
• Power Input: 50 W
• Max. Angle: 124°
• Cycle Time: 20 Sec.
• Max Weight: 550 lbs
• Locking: Mechanical
• Control Panel: Thalia
• Protection Rating: IPX4
• Impact Reaction: D-Track
• Frequency of Use: Intensive
• Type of Limit Switch: Magnetic
• Reversible/Irreversible Operator: Irreversible
• Environmental Conditions: -4°F - 131°F
